HVAC Air Vents, Diffusers & Grilles

Air vents are the visible end of an HVAC system. Their job is to distribute supply air evenly without draughts, and to return it without noise — while matching the ceiling finish closely enough not to draw attention.

We mould these in high-impact ABS rather than forming them in metal. ABS does not corrode, will not dent in handling, and weighs a fraction of an aluminium grille — which matters when the unit is being fixed overhead. Because supply and return grilles are usually visible in the same room, we produce both in the same ABS grade and finish. Ordered together, they match; ordered separately from different suppliers, they rarely do.

Air Supply Diffusers

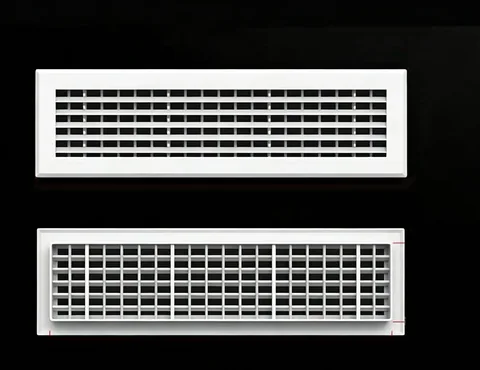

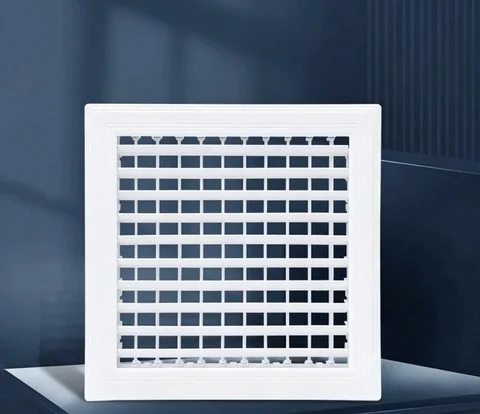

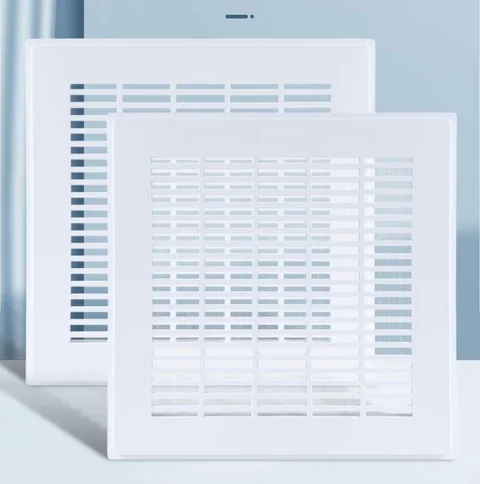

Supply diffusers distribute conditioned air into the room. Fixed-blade units are the general-purpose choice; adjustable-blade units let the installer tune throw and direction on site, which is useful where furniture layout or ceiling height is not yet fixed.

Standard specification — custom values available on request.

Material	High-impact ABS, UV-stabilised

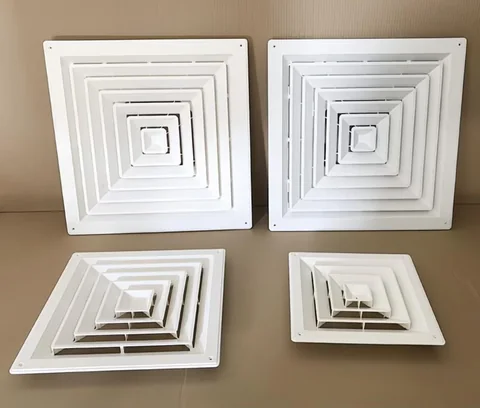

Types	Square diffuser, circular diffuser, linear slot diffuser
Blades	Fixed or adjustable, single or double deflection
Standard sizes	150×150 up to 600×600 mm; circular 100–400 mm dia.
Finish	Powder-coated white (RAL 9010) as standard; any RAL to order
Mounting	Ceiling or wall; concealed fixing available
Options	Volume damper, opposed-blade damper, plenum box

Return Air Grilles

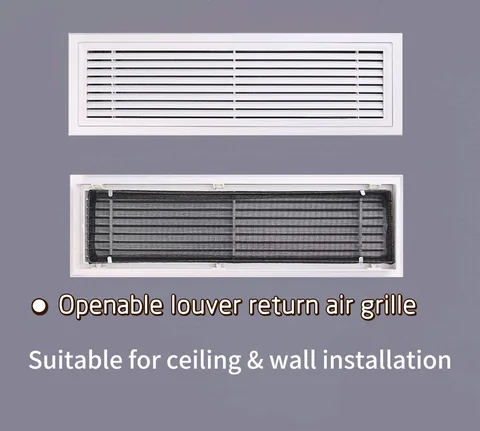

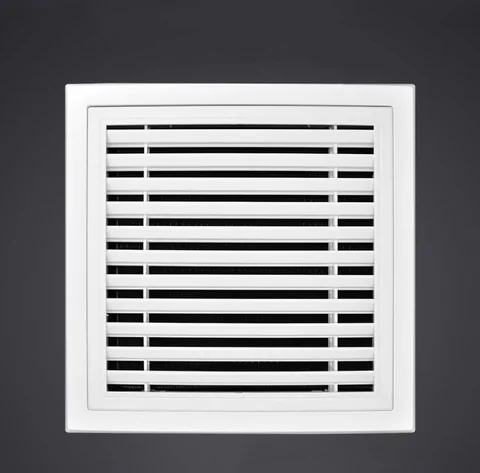

Return grilles take air back to the plant. Fixed-blade construction with a removable core, so the grille can be lifted out for duct cleaning without disturbing the frame. Filter-backed versions are available where return air needs a first stage of filtration.

Standard specification — custom values available on request.

Material	High-impact ABS, UV-stabilised

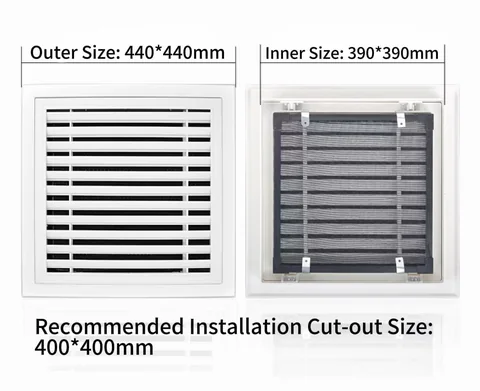

Types	Fixed-blade return grille, hinged return grille, filter grille
Standard sizes	200×150 up to 1200×600 mm
Core	Removable for duct cleaning
Finish	Powder-coated white (RAL 9010) as standard; any RAL to order
Mounting	Wall or ceiling, with or without frame
Options	Washable aluminium filter, volume damper

Ordering

Send us the neck size, the face size, the type, and the RAL colour. Where a project specifies a particular grille pattern, a photo or a sample lets us match the blade pitch and spacing. Standard sizes ship from stock; non-standard sizes add roughly 15–20 days.
